WELDSPEED AT RVE / Intake manifoldsReturn to collection
3SGE BEAMS — DSC_0241.jpg01 / 09
MANUFACTURER PHOTOGRAPHY
WeldspeedWELDSPEED

3SGE BEAMS

Toyota 3SGE BEAMS engine; originally designed for the Toyota Altezza.

Engine-specific
COMING SOON · OUT OF STOCKSUPPLIER REFERENCE

From AUD 1,899.00

Australian dollars. This is a supplier reference, not an RVE USD selling price.

This new product is not available to order from RVE yet. RVE pricing and fulfillment are being finalized.

Choose each option to inspect the manufacturer configuration and AUD reference price.

Ask RVE about this product
  • Manufacturer identity: Weldspeed
  • Supplier stock does not indicate RVE stock

SPECIFICATIONS

Product
Information

Review the application, supporting parts and product-specific notes before planning your installation.

Weldspeed product listing Source checked October 30, 2026.

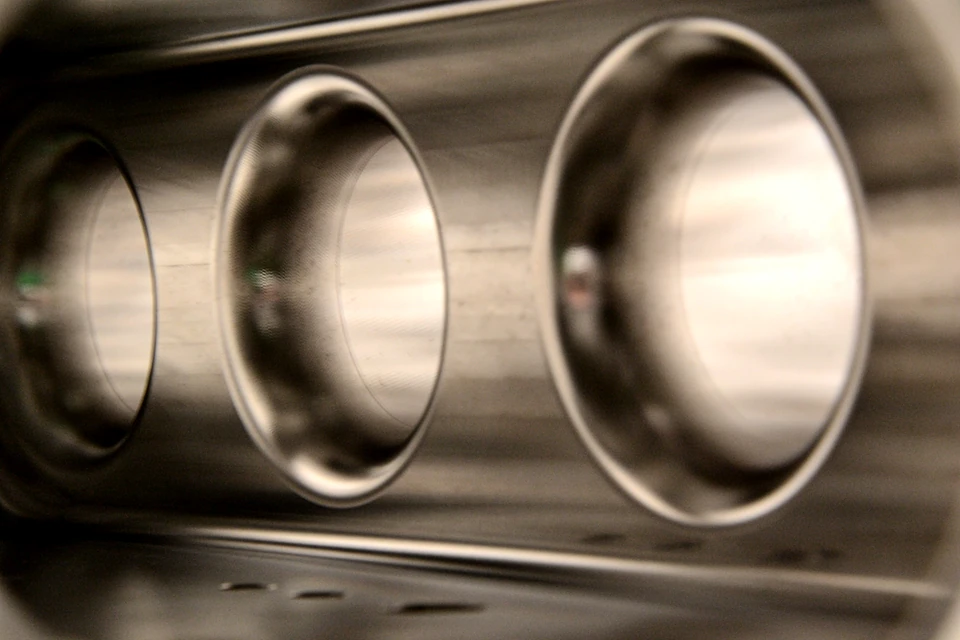

“All Weldspeed intake manifold runner bases are precision CNC machined from 6061-T6 billet aluminium with integrated bell mouths.”

Weldspeed product listing

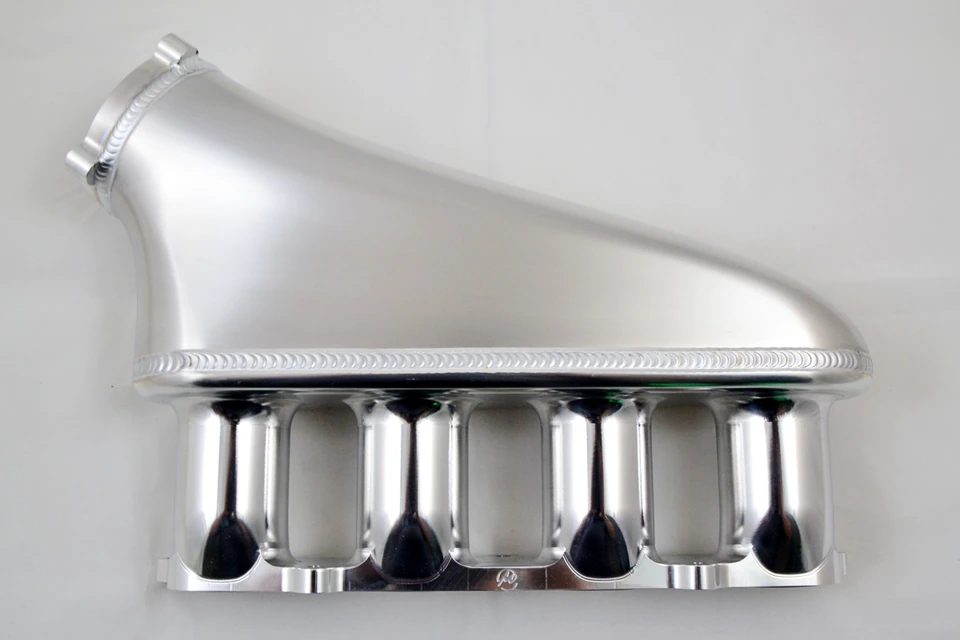

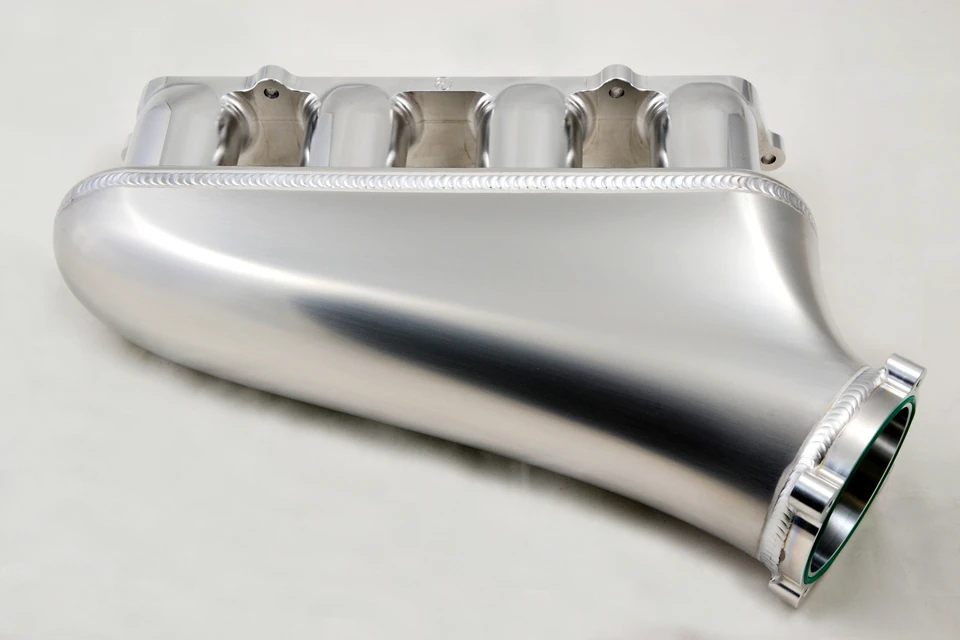

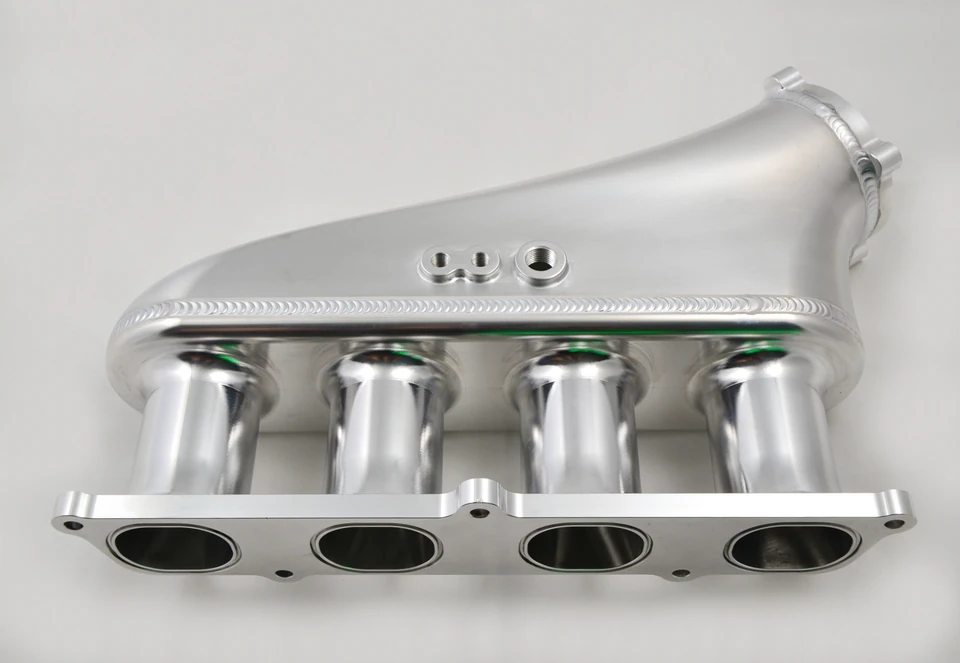

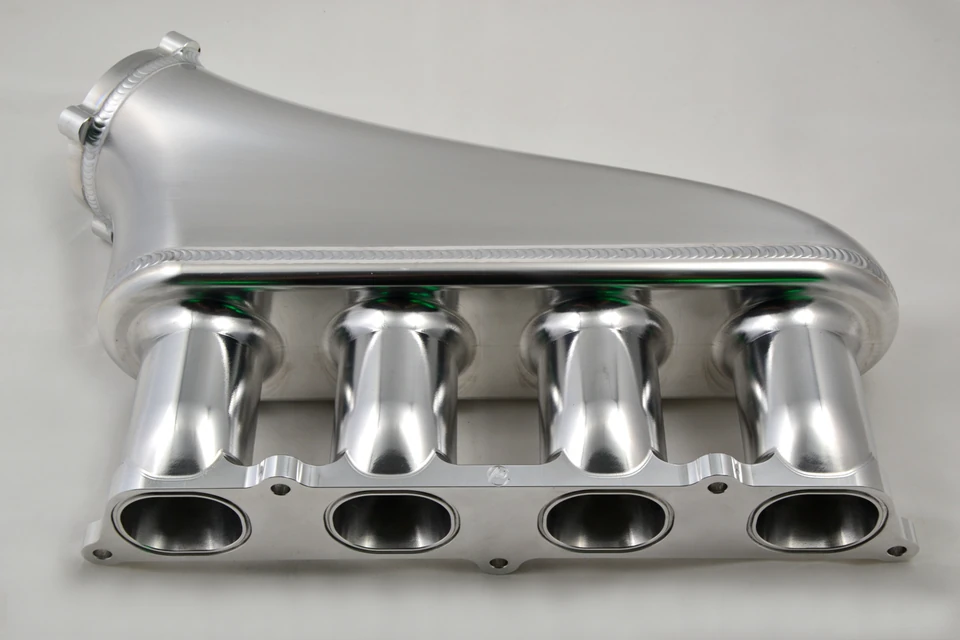

A fabricated intake manifold for Toyota 3SGE BEAMS builds, combining CNC-machined billet runners with an integrated bellmouth design and TIG-welded plenum. The source also describes naturally aspirated and turbocharged BEAMS engine conversions.

Application & fitment
  • Toyota 3SGE BEAMS engine; originally designed for the Toyota Altezza.
Specifications & materials
  • Front-facing or rear-facing plenum orientation can be specified with Weldspeed.
  • Satin finish; four throttle-flange selections.
  • Runner material: 6061-T6 billet aluminium.

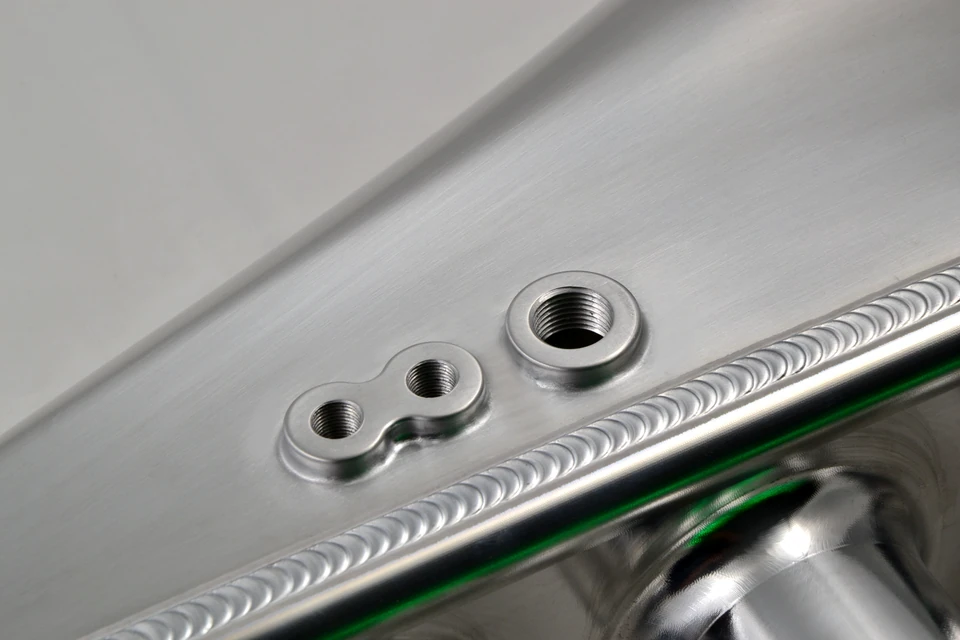

  • Vacuum ports: one 3/8 NPT and two 1/8 NPT.

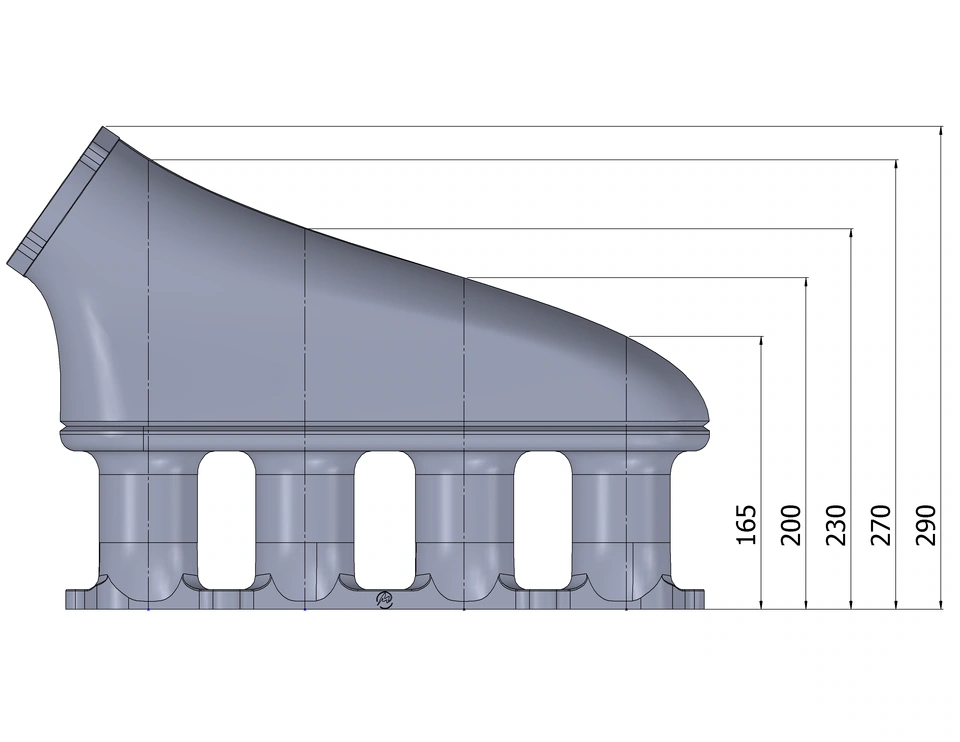

  • Supplier dimension drawing: stepped profile labels 165 / 200 / 230 / 270 / 290. Refer to the gallery drawing for measurement locations; the image does not state units.
Included components

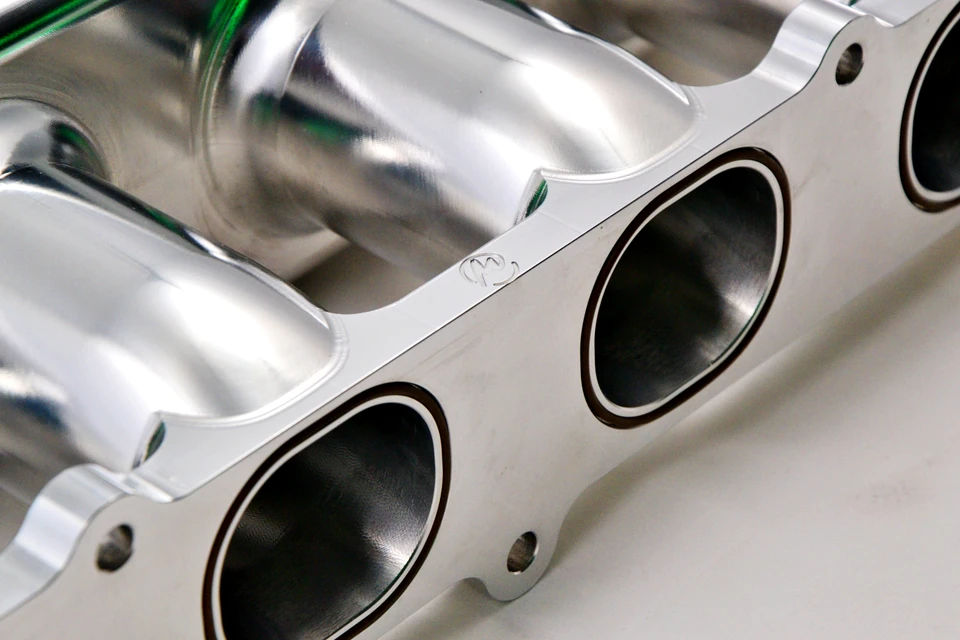

  • Viton O-ring head-flange seals.
  • Assorted vacuum hose adapters.
Manufacturer resources
Product-specific notes
  • KExx and AE86 BEAMS swaps are mentioned by the manufacturer; chassis clearance and conversion requirements still depend on the installation.
  • Plenum orientation is described as a custom-order detail and is not a selectable supplier variant.
  • Throttle flange selection does not establish that a throttle body is included.
Ordering through RVE

New Weldspeed catalog additions are coming soon. Supplier prices are shown in AUD for reference only; RVE USD prices and ordering will be confirmed separately. Supplier production times and availability do not establish RVE delivery dates.

RVE’s shipping, returns and purchase terms apply to RVE orders. Contact RVE to confirm fitment, fulfillment and warranty handling for your build.
